Weave Designer

Features Weave Designer

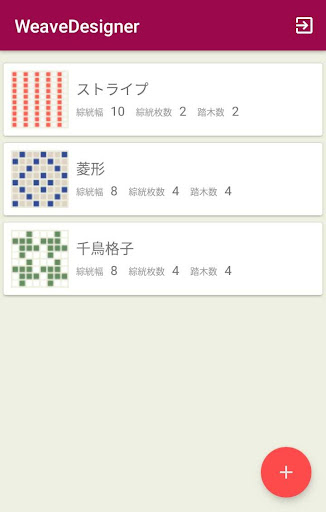

It is an application that can create an organization chart to be used with fabrics.Organization charts created can be saved as PDF.1.
Set the width and number of heddles and the number of trestles.2.
Set the warp in the heald and set the tie-up with the step.3.
Add a weft with +1 button.4.

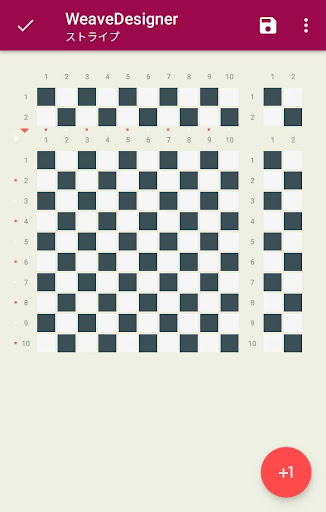

Organization chart is completed by choosing a step for passing weft thread.- By tapping the part where the triangular arrow in the upper left corner of the organization chart is displayed, you can reset the basic colors of the aspect ratio, preview display, and color.- Tap the matrix number in the organization chart to set the warp and weft colors, respectively.- You can delete rows of too much added weft yarn by pressing the line number.
